| LZM- Z系列流量計 |
LZM- Z系列流量計技術參數
|
|
|
| |
| 型號 |
流量范圍 |
接口螺紋 |
精度 |

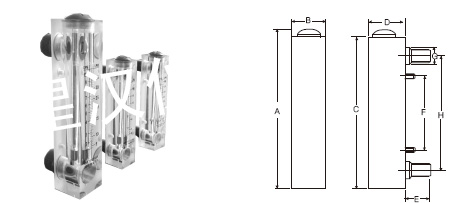

尺寸 (mm) |
| GPM (液體) |
LPM (液體) |
NM3/h (氣體) |
A |
B |
C |
D |
E |
F |
G |
H |
| LZM-15ZA |
|
15-150lLPH |
0.1-1
0.16-1.2
0.3-3 0.4-4 |
外ZG1/2" 內ZG1/4" |
+4% |
157 |
32 |
150 |
35 |
25 |
60 |
25 |
110 |
| LZM-15Z |
|
10-100LPH |
0.04-0.4
0.1-1
0.16-1.6
0.24-3
0.25-2.5
0.4-4
0.6-6
0.8-8 1-10
1.6-16 1.8-18
2-20 2.4-24
2.5-25 3-30
4-40 |
外ZG1/2" 內ZG1/4" |
175 |
32 |
168 |
35 |
25 |
76 |
25 |
127 |
| 16-160LPH |
| 25-250LPH |
| 0.03-0.35 |
0.1-1.4 |
| 0.05-0.5 |
0.2-2 |
| 0.1-1 |
0.5-4 |
| 0.15-0.5 |
0.6-6 |
| 0.2-2 |
1-7 |
| 0.3-3 |
1-11 |
| 0.5-5 |
2-18 |
| LZM-25Z |
1-10 |
5-35 |
2.5-15
2.5-25
4-40
6-60
10-100
20-100
16-160
25-250
30-300
35-350
|
外ZG1" |
234 |
45 |
226 |
46 |
33 |
100 |
37 |
160 |
| 1-15 |
5-50 |
| 2-14 |
10-50 |
| 2-20 |
10-70 |
| 5-35 |
10-130 |
| 5-40 |
10-150 |
| 5-45 |
10-170 |
|
0.3-2.1m3/h |
| 0.6-3m3/h |
| 0.6-4.2m3/h | |
| |
| LZM- Z系列流量計零部件材質及代碼 |
| 有無調節閥 |
接咀材質 |
浮子材質 |
O形圈材質 |
| O-無調節閥 |
1-塑料ABS
2-塑料PP
3-塑料PVC
4-黃銅
5-黃銅鍍鉻
6-不銹鋼 |
1.不銹鋼
2.有機玻璃
3.瑪瑙球
4.聚四氟乙烯 |
1.硅橡膠
2.氟素橡膠
3.丁腈膠 | |
|
|
